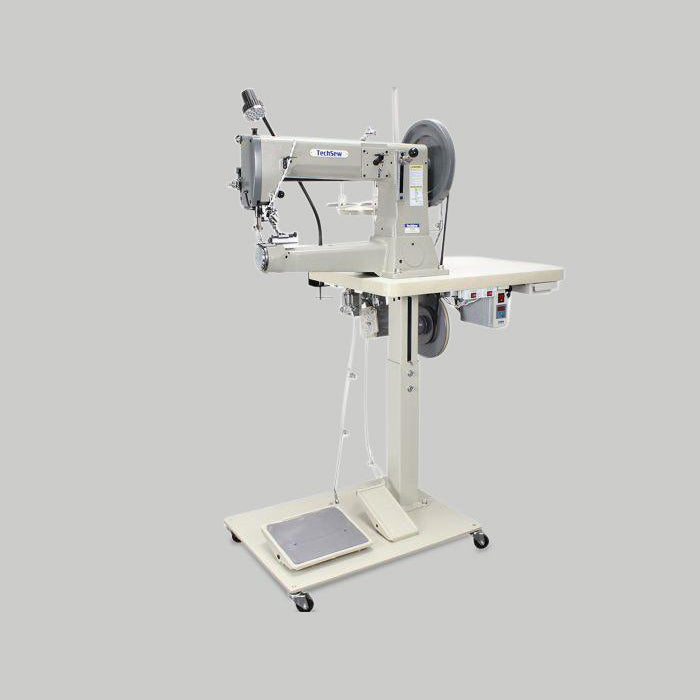

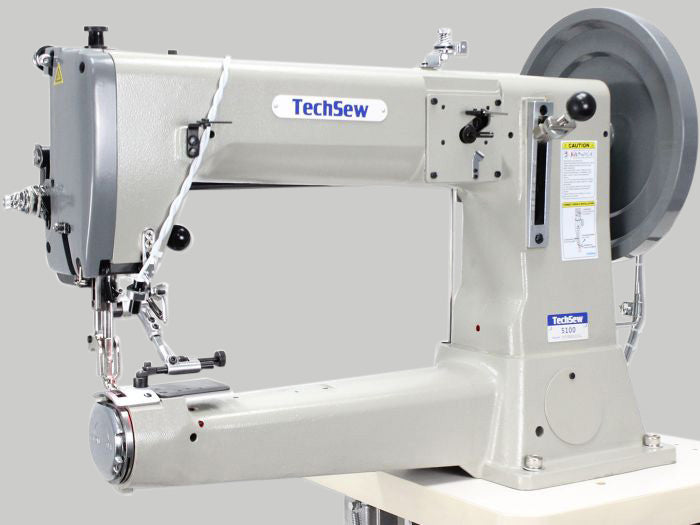

Techsew - 5100-SE Heavy Leather Stitcher

The Techsew 5100 Special Edition is the ultimate sewing machine designed for sewing a wide range of leather products.

Light range leather work: Purses, handbags, pouches, wallets, notebook covers, vests
Medium range leather work: Belts, knife sheaths, scabbards, quivers, horse blankets
Heavy range leather work: Saddles, gun holsters, knife sheaths, harnesses, horse tack

Additionally it is great for heavy tie down straps, boat/car covers, orthopedics, thick paper binding, parachute harnesses, tarps, vinyl, canvas, synthetics, heavy webbing and more.

SPECIAL EDITION FEATURES:

  • Automatic Needle Position System – designed for improved efficiency, the SmartServo-NP motor will automatically stop the needle in the down position when the operation pedal is released, thus allowing the operator to more easily turn the product to sew a 90-degree corner

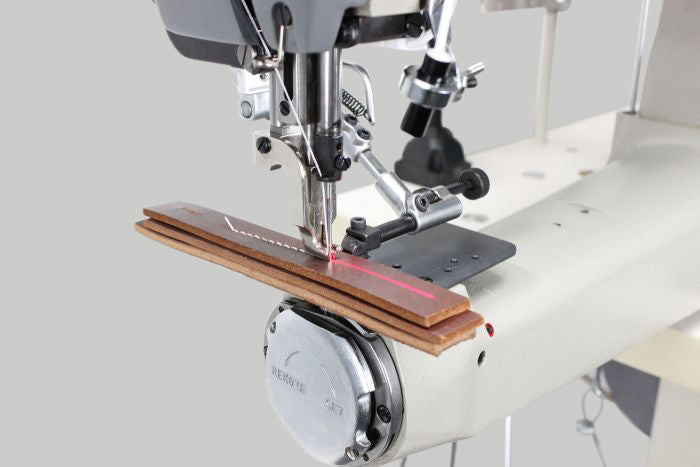

  • Laser Guide – the laser line facilitates the sewing of straight lines and aligning rows of stitches

  • Swing Down Roller Edge Guide – adjustable and easy to swing up and out of the way, the roller edge guide helps to feed the material in a straight line thus improving stitch accuracy

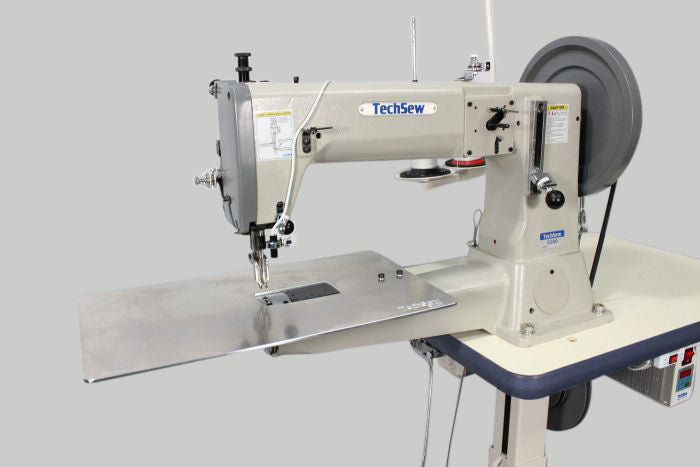

  • Flatbed Table Attachment – the attachment fits directly over the cylinder arm, converting it to a flatbed machine to facilitate sewing of flat products such as wallets and belts

  • Speed Reducer Pulley – The speed reducer pulley is installed in combination with the variable speed Servo motor, further reducing the sewing speed from a minimum of approximately 2 stitches per second to less than 1 stitch per second

  • Accessories Package – an accessories package comprising of 1 spool of size #207 bonded nylon sewing thread, 3 packages of needles (various sizes), 8 bobbins and specialty presser feet will be included

  • Stainless Steel Presser Feet - our specialty presser feet are narrow for sewing into tight spaces and around edges. Plus they're stainlesss steel and smooth on the bottom so they won't leave marks on leather and soft materials.

MACHINE FEATURES:

  • Automatic needle position system motor

  • Triple Feed - Walking Foot (needle feed + alternating presser feet + bottom feed)

  • 1" Presser foot clearance

  • Sews from 5-6oz all the way up to 7/8" thick

  • 16.5" Cylinder bed

  • Stainless steel presser feet

  • Equipped with Techsew SmartServo-NP automatic needle position system motor and speed reducer to sew at slow & controlled speeds - great for novice, intermediate and professional sewers

  • Reverse stitch - for reinforcing stitches

  • 12 inch heavy duty flywheel

  • Reinforced steel pedestal style table with adjustable height (sew standing up or sitting down)

  • Stitch length adjustment up to 11mm (7/16")

  • Uses thread sizes 69 to 415

  • Uses needle sizes 18 to 27

  • Includes Limited Lifetime Warranty and FREE technical support for the life of your machine

  • Machine comes pre-threaded, oiled, adjusted and READY TO SEW

WHAT'S INCLUDED?

  • Machine head

  • Special edition package (automatic needle position system, laser guide, swing down roller edge guide, flatbed attachment, accessories package)

  • Specialty presser feet - double toe presser foot, left toe presser foot and narrow center foot

  • Assorted 3 x 10/pk of 7x3 and 794DIA needles (size 23, 25, 27)

  • 8 bobbins

  • 1/2 lb. 1000 yard spool of bonded nylon thread size #207 (color may vary)

  • Reinforced pedestal table with locking casters

  • SmartServo motor (110v)

  • Speed reducer pulley

  • LED lamp

  • Thread lubrication pot

  • Thread stand

  • Operation manuals

  • Oil

  • Drive belt

  • Table drawer

  • Screwdrivers

MACHINE SPECIFICATIONS:

  • Needle sizes: 18 to 27

  • Thread sizes: 69 to 415

  • Presser foot clearance: 1"

  • Sewing capacity: 6oz to 7/8" thick

  • Cylinder bed length: 16.5"

  • Maximum stitch length: 11mm

  • Techsew SmartServo-NP motor: 750W, 1HP, 110V
